6 axis Robot

AUTOMATION TO INCREASE THE ACCURACY AND REPEATABILITY OF THE TESTS

Robotics allows the automation of certain tasks on your testing environment, increasing the speed of the tests, reducing the level of errors and focusing the engineering in their added value. It can be used to automate test campaigns within a complete solution based on specific standards like EMVCo or NFC Forum or to perform interoperability tests.

Connect with our team
TECHNICAL CHARACTERISTICS

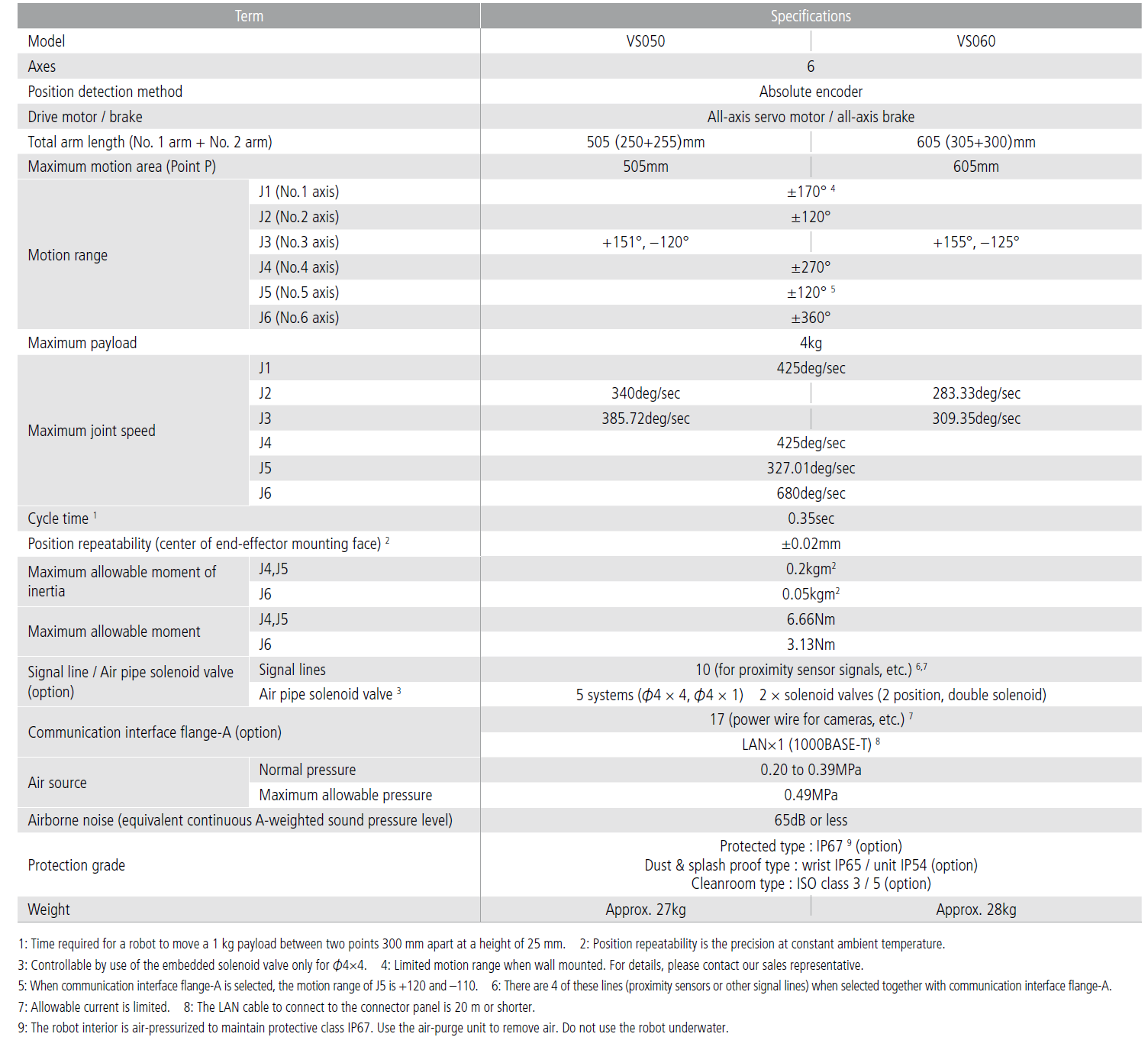

V 060 SPECIFICATIONS

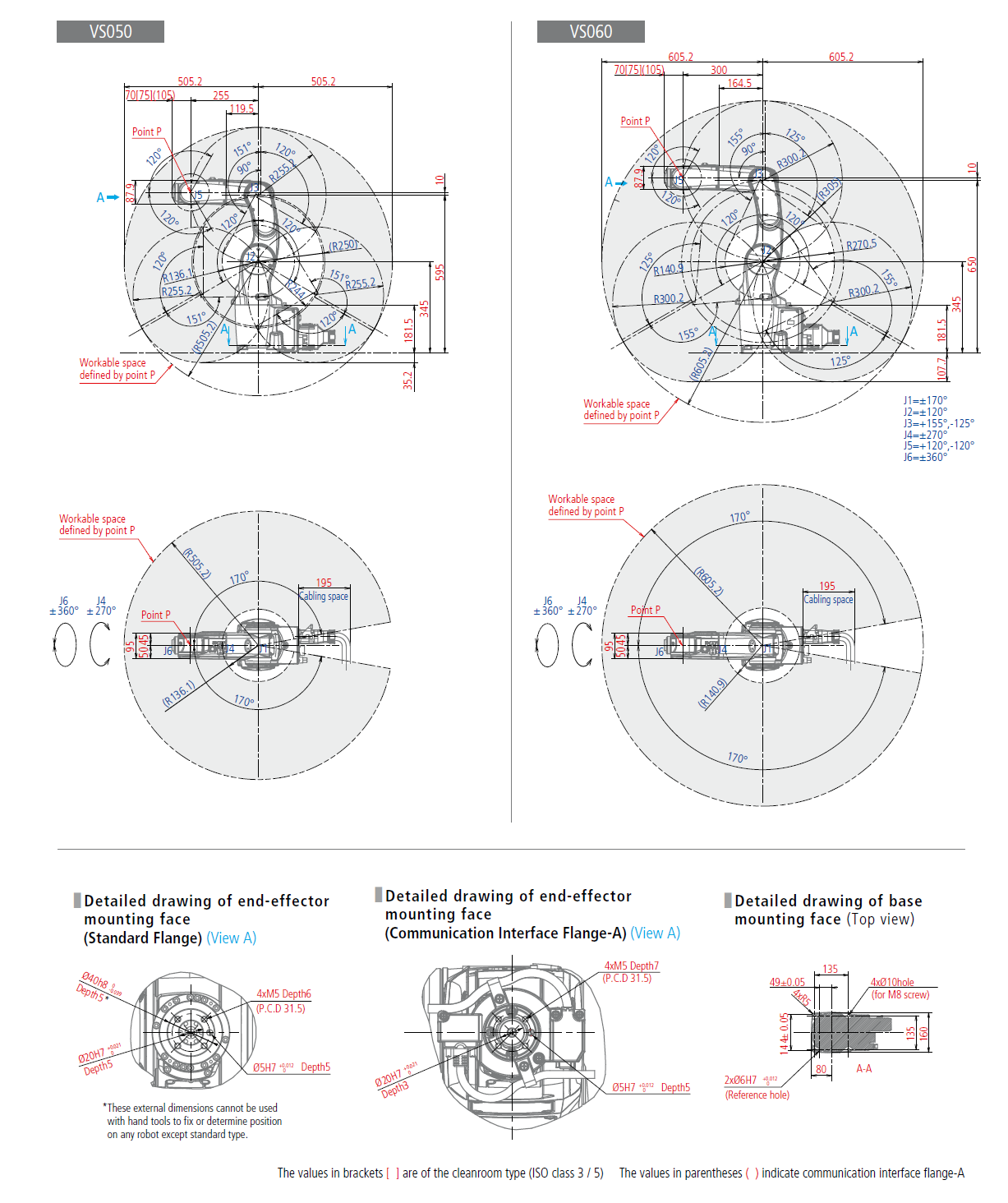

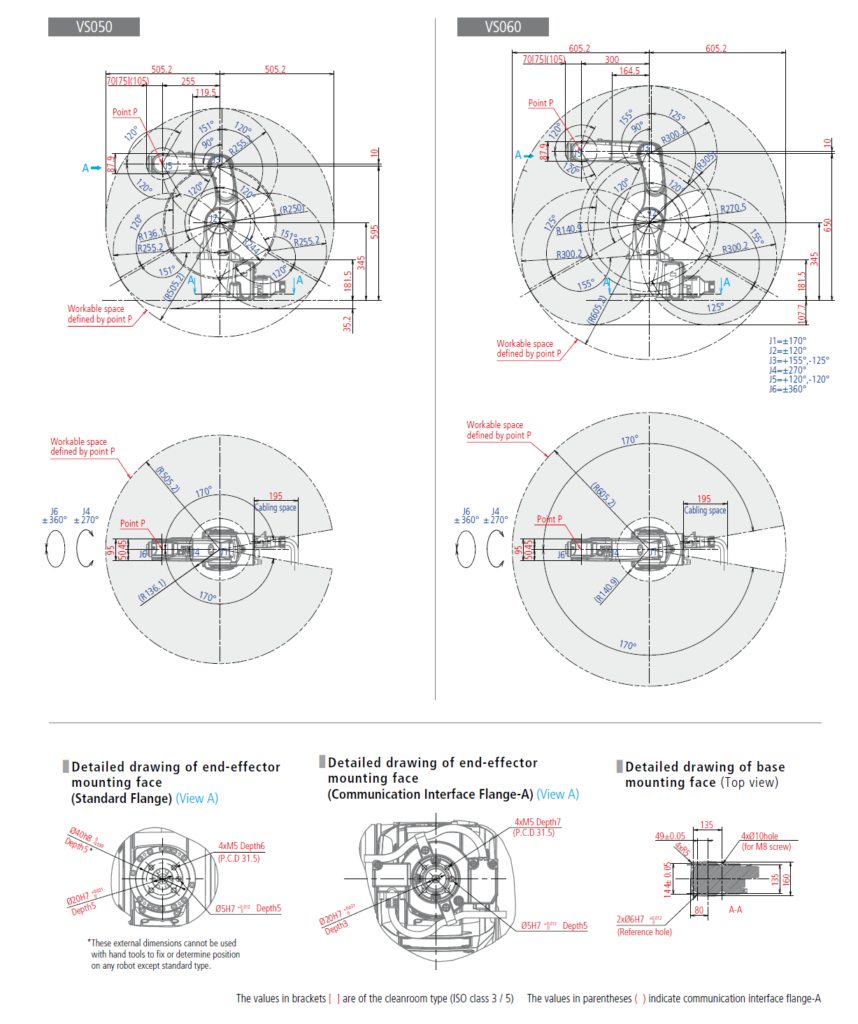

V 060 EXTERNAL DIMENSIONS AND WORKABLE SPACE

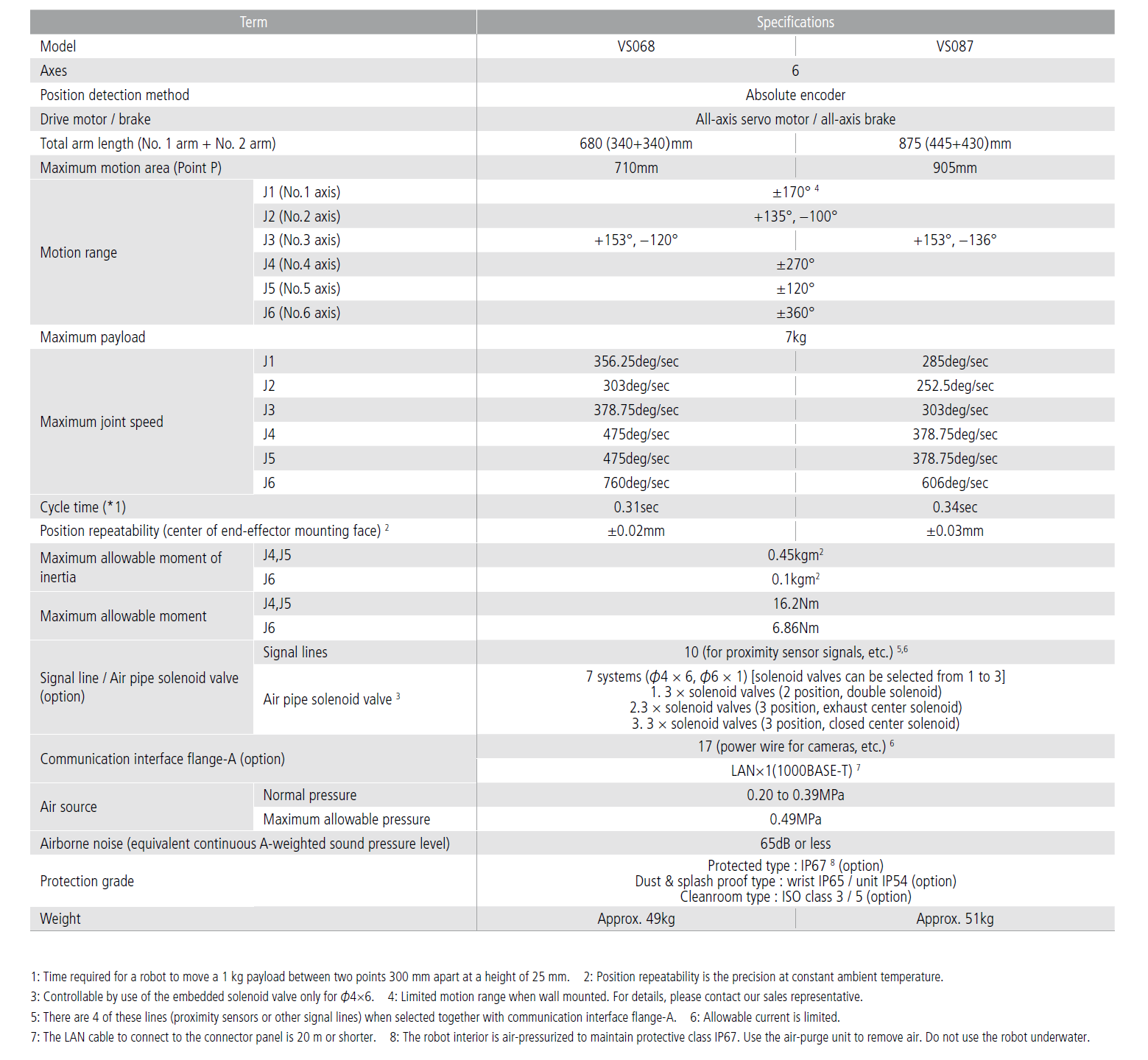

V 087 SPECIFICATIONS

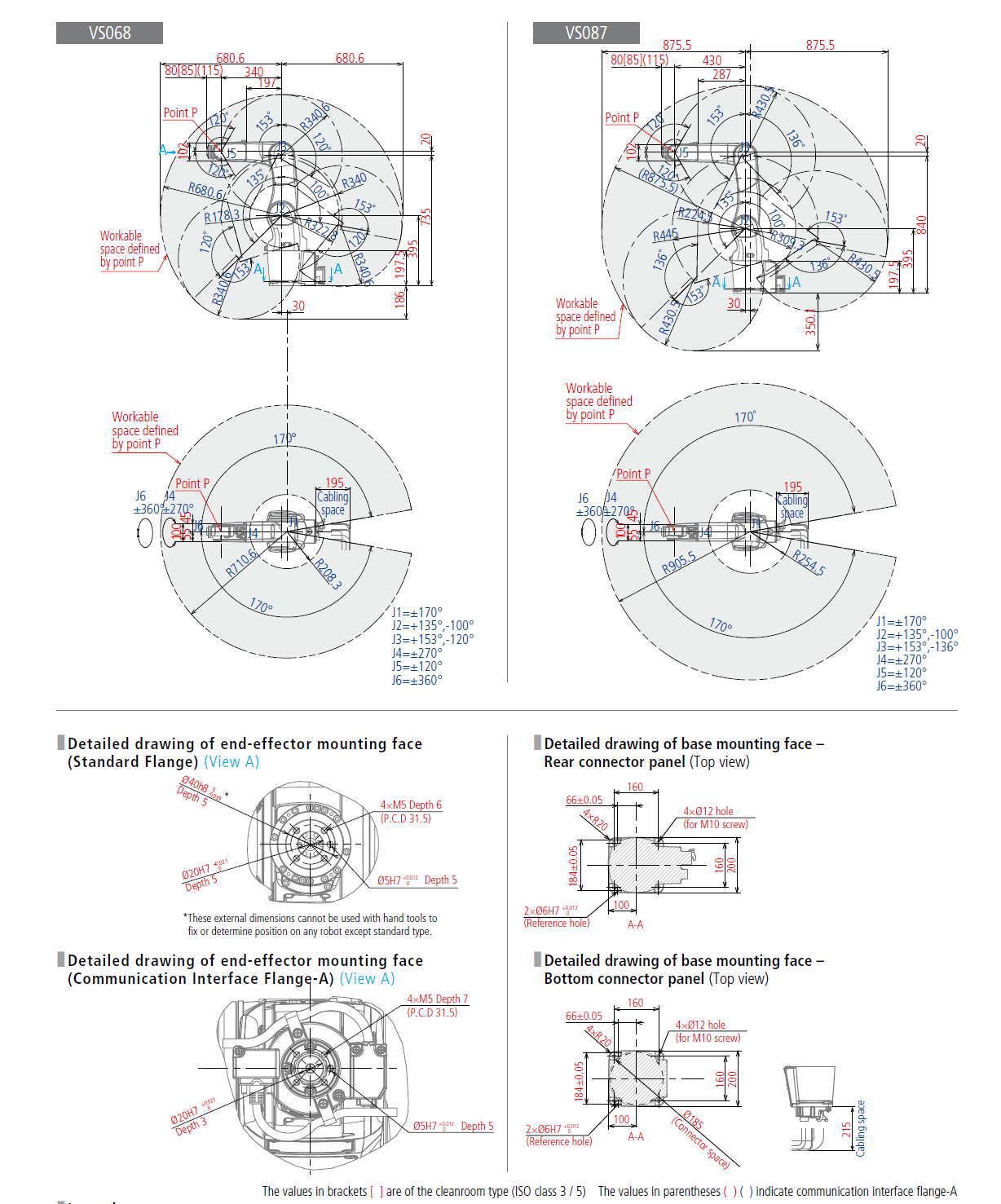

V 087 EXTERNAL DIMENSIONS AND WORKABLE SPACE


REFERENCE OPTIONS
  • SC-Rob6X-VS060 : Robot DENSO VS 060 for conformity test and interoperability of PCD/PICC with a maximum arm reach of 605mm.
  • SC-Rob6X-VS087 : Robot DENSO VS 087 for interoperability of PCD/PICC with a maximum arm reach of 905mm.
HARDWARE ACCESSORIES

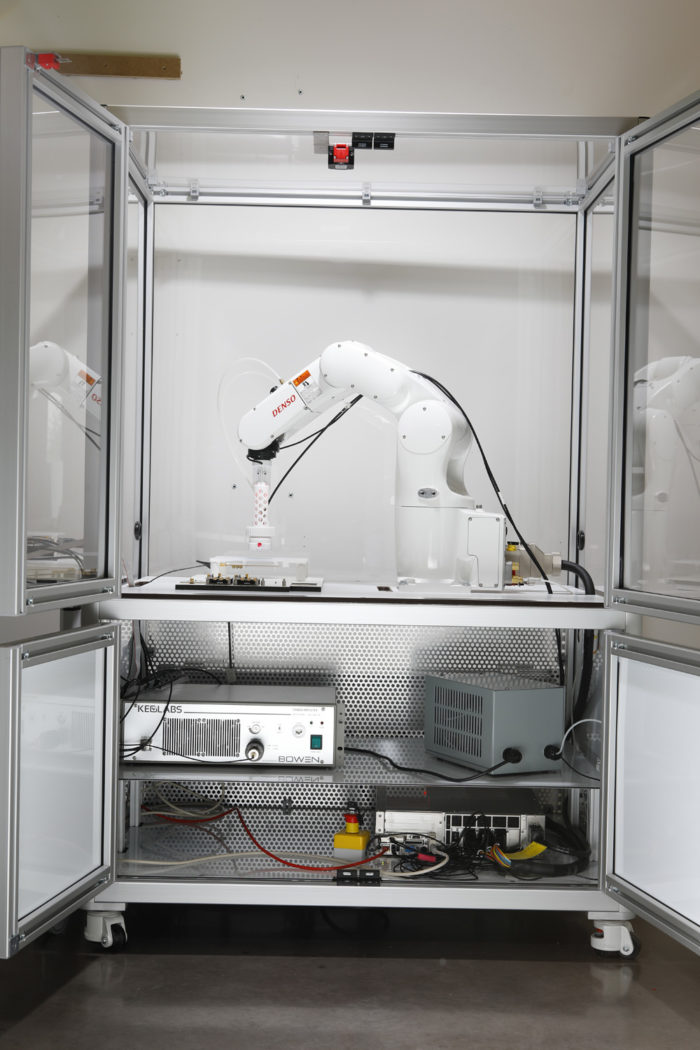

  • Protection Cage: A cage is available as an option for a safety environment. If not, the Robot arm needs to be fixed on a wooden table. If the robot is bought without the protection cage proposed by KEOLABS, the robot must be integrated in a secured environment in compliance with Directive 2006/42/EC.
    The cage provided by KEOLABS is in aluminum & makrolon with wheels.
