The Best Solution To Verify Your Identity Applications

KEOLABS PROVIDES OFF-THE-SHELF SOLUTIONS TO VERIFY CONFORMITY OF INTERNATIONAL ePASSPORT, eID, AND eDRIVING LICENSE CARDS.

The International Civil Aviation Organization’s (ICAO) standard is the international testing standard for validating electronic Machine Readable Travel Documents (eMRTD) implementing the ISO/IEC 18745-2 testing standard. The ISO/IEC 10373-6 is the international test standard for functional validation at the analog and protocols levels of smart cards, card readers and other devices implementing the ISO/IEC 14443 protocol in 13.56 MHz contactless communications.
For application-level, several international test specifications have been defined to test the Operating system like ICAO part 3 or eMRTD Part 4.







Connect with our team

Used By The best National Printing Companies

For ePassport & Border control, KEOLABS provides complete testing solutions conformance based on ISO/IEC 18745-2 standard for ICAO analog & protocol levels; ICAO part 3 + BSI TR-0305 part 3.2 for the ePassport application part and eMRTD Part 4 for application inspection systems. It is the foundation for ensuring the durability, reliability and interoperability between an ePassport and a border control.



For e-Identity & e-Driving license cards, KEOLABS provides complete testing solutions conformance based on ISO/IEC 10373-6 and ISO/IEC 7816 standards for analog and digital functional levels; Identification Authentication Signature – European Citizen Card (IAS-ECC)  and BSI TR-03105 PART 3.3 Test plan for eID-Cards with Advanced Security Mechanisms – EAC 2.0 for the OS (operating system) of an eID card For the e-Driving license, KEOLABS proposes a test suite based on the international ISO/IEC 18013-4 test specification.

SCRIPTIS: an intuitive testing environment

SCRIPTIS™ software is a complete, open and simple testing environment. It runs on the user’s PC and allows easy control of a range of software/hardware solutions designed for testing conformance of smart cards, card readers, related components and systems in accordance with relevant industry standards.

KEOLABS’ test suites are used in SCRIPTIS™ testing environment which facilitates testing with automation features such as visual cues and aids for manual testing, or robot integration for fully automated testing. SCRIPTIS provides full visibility of test results including logs and traces of communications between the test bench and the tested device.







Technical Characteristics
License Options

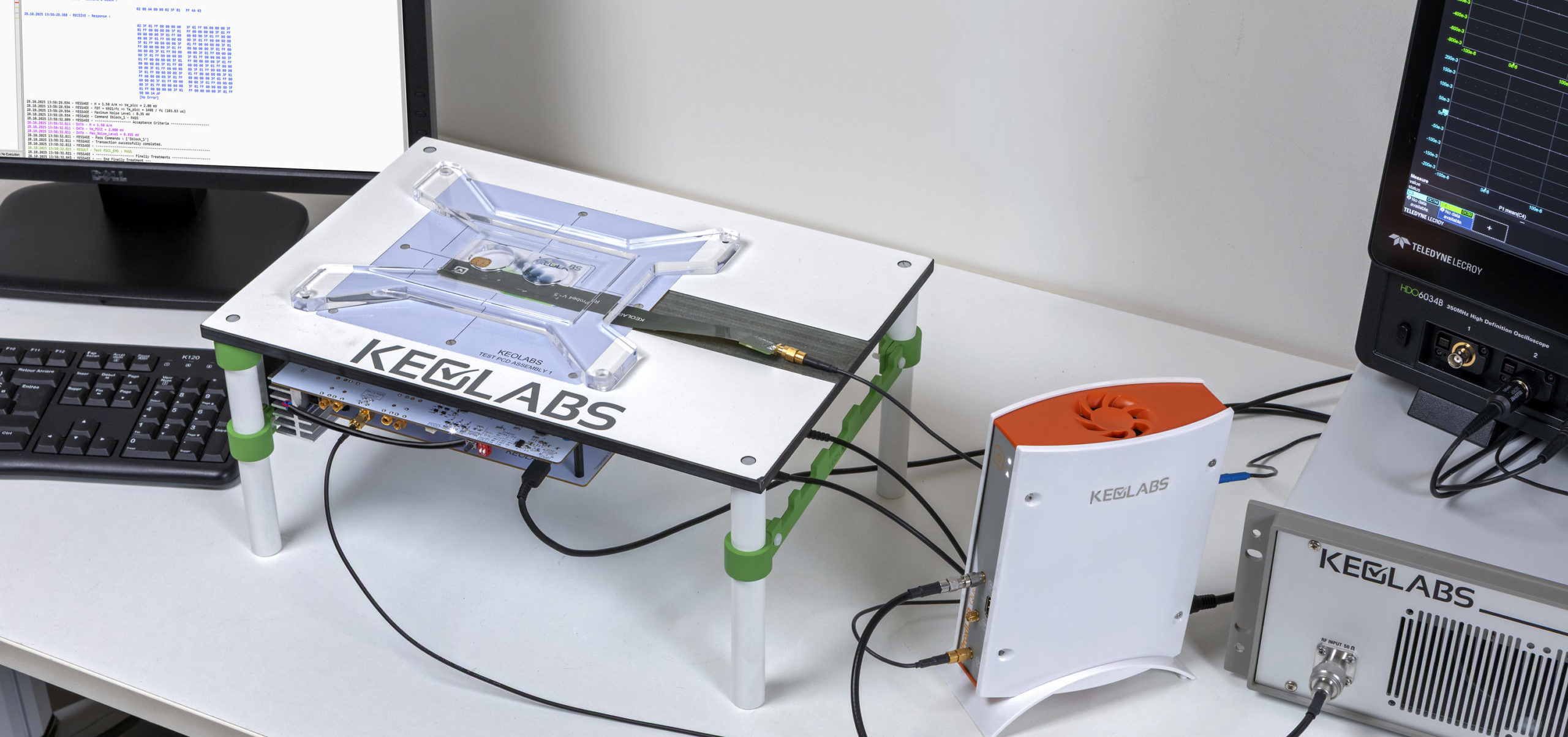

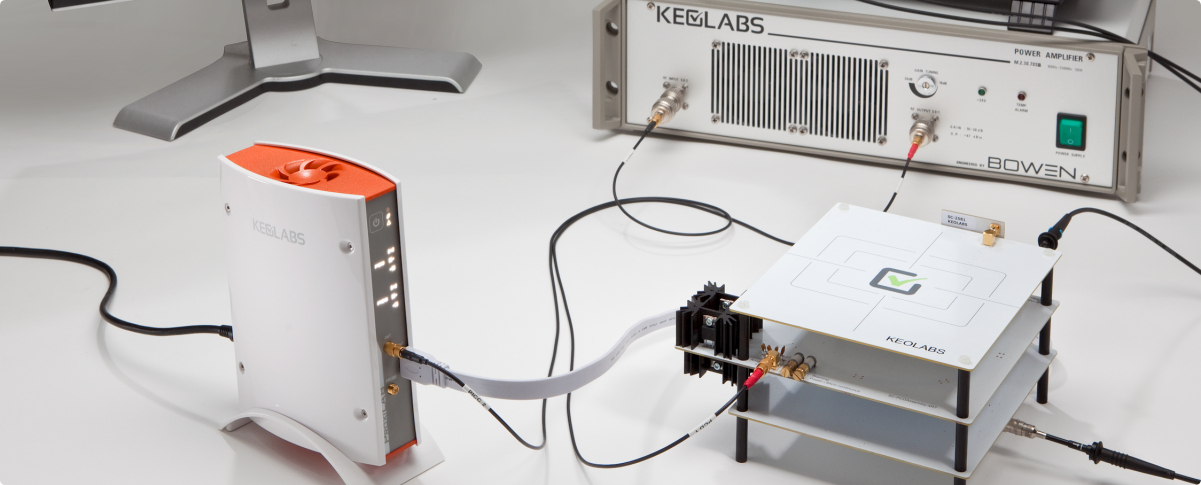

Hardware Components

ePASSPORT & BORDER CONTROL

1. PICC ANALOG ISO 18745-2 TEST SUITE / PICC ANALOG ISO 10373-6 TEST SUITE

This PICC Analog test suite is compatible with the following standard:

ISO/IEC 10373-6:2016 standard for Type A and Type B

ISO/IEC 18745-2:2020 standard



Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 18745-2:2020):

  • §5.2.3 – Test of ISO/IEC14443-1 parameters / Alternating magnetic field test
  • §5.3.1 – Test of ISO/IEC14443-2 parameters / eMRTD transmission (performed at 106 kbps, 1.7Mbps, 3.4Mbps and 6.8Mbps)
  • §5.3.2 – Test of ISO/IEC14443-2 parameters / Operating field strength (performed at 106kbps, 212kbps, 424kbps, 847kbps, 1.7Mbps, 3.4Mbps and 6.8Mbps)
  • §5.3.3 – Test of ISO/IEC14443-2 parameters / eMRTD reception (performed at 106kbps, 212kbps, 424kbps, 847kbps, 1.7Mbps, 3.4Mbps and 6.8Mbps)
  • §5.3.5 – Test of ISO/IEC14443-2 parameters / eMRTD maximum loading effect
  • §7.2.3 – Test of ISO/IEC14443-2 parameters / eMRTD EMD level and low EMD time test (performed at 106kbps)



2. PICC DIGITAL ISO 18745-2 TEST SUITE / PICC DIGITAL ISO 10373-6 TEST SUITE

The PCD Digital test suite is compliant with the following standards:

ISO/IEC 10373-6:2016 standard for Type A and Type B

ISO/IEC 18745-2:2020 standard



The different test command sequences defined in ISO/IEC 18745-2:2016 for “Plain”, “BAC-Basic Access Control”, “EAC-Extended Access Control”, “PACE-Password Authenticated Connection Establishment ” with “AA-Active Authentication” option are supported. These norms describe the tests to be performed as scenarios and KEOLABS has split these scenarios into various test scripts.



Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 10373-6:2016):

Type A initialization tests

  • §G.3.2 – Scenario G.1 Polling Type A
  • §G.3.3 – Testing of the PICC Type A state transitions
  • §G.3.4 – Handling of Type A anti-collision
  • §G.3.5 – Handling of RATS
  • §G.3.6 – Handling of PPS request
  • §G.3.7 – Handling of FSD

Type B initialization tests

  • §G.4.2 – Scenario G.1 Polling Type B
  • §G.4.3 – Scenario G.22: PICC Reception
  • §G.4.4 – Testing of the PICC Type B state transitions
  • §G.4.5 – Scenario G.28: Handling of Type B anticollision
  • §G.4.6 – Handling of ATTRIB
  • §G.4.7 – Scenario G.31: Handling of Maximum Frame Size



Type A or type B logical operation tests

  • §G.5.2 – PICC reaction to ISO/IEC 14443-4 Scenarios
  • §G.5.3 – Handling of PICC error detection
  • §G.5.4 – PICC reaction on CID
  • §G.5.5 – PICC reaction on NAD
  • §G.5.6 – PICC reaction on S(PARAMETERS) blocks



3. ePASSPORT – APPLICATION EMRTD TEST SUITE

This test suite covering ISO7816 and Logical Data Structure are conformed to the ICAO specification called:

RF PROTOCOL AND APPLICATION TEST STANDARD FOR EMRTD
PART 3: TEST FOR APPLICATION PROTOCOL AND LOGICAL DATA STRUCTURE



Layer 6 Security and Commands tests

  • SelectApplication command,
  • Security conditions of BAC protected eMRTDs,
  • Basic access control,
  • Protected SelectFile command,
  • Protected ReadBinary command,
  • Unprotected SelectFile command,
  • Unprotected ReadBinary command,
  • Security Conditions for PACE-protected eMRTDs,
  • Password Authenticated Connection Establishment (PACE),
  • Select and Read EF CardAccess,
  • Active Authentication,
  • Select and Read EF.CardSecurity.



Layer 7 Logical Data Structure tests

  • Tests for the EF.COM LDS object,
  • Tests for the Datagroup 1 LDS object,
  • Tests for the datagroup 2 LDS object,
  • Tests for the SOD LDS object,
  • Data Group 14,
  • EF.CardAccess,
  • Data Group 15,
  • EF.CardSecurity.



Moreover, this test suite is based on advanced security mechanisms for machine readable travel documents Extended Access Control (EAC) / Tests for security implementation and includes these additional tests.Security and Commands tests:

  • Security Conditions for EAC protected MRTDs,
  • Chip Authentication (MSE:Set KAT),
  • Chip Authentication (MSE:Set AT-GA),
  • Certificate verification,
  • Terminal Authentication,
  • Effective Access Conditions,
  • Update mechanism,
  • Migration policies.



Logical Data Structure tests

  • Data group 14,
  • EF.CVCA Object,
  • DataGroup 3 LDS Object,
  • DataGroup 4 LDS Object.



4. PCD ANALOG ISO 18745-2 TEST SUITE / PCD ANALOG ISO 10373-6 TEST SUITE

This PCD Analog test suite is compatible with the following standard:

ISO/IEC 10373-6:2016 standard for Type A and Type B

ISO/IEC 18745-2:2020 standard



Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 10373-6:2016):

ISO/IEC 14443-1 parameters tests

  • §6.1.1 Alternating magnetic field test

ISO/IEC 14443-2 parameters tests

  • §7.1.1 – PCD field strength
  • §7.1.4 – Modulation index and waveform
  • §7.1.5 – Load modulation reception
  • §7.1.6 – PCD EMD immunity test
  • §7.1.7 – PCD EMD recovery test





5. PCD DIGITAL ISO 18745-2 TEST SUITE / PCD DIGITAL ISO 10373-6 TEST SUITE

The PCD Digital test suite is compliant with the following standards:

ISO/IEC 18745-2:2020 and

Application Profile for Contactless Interface v1.3



Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 10373-6:2016):

Type A specific tests

  • §H.2.1 – Frame Delay Time PICC to PCD ISO/IEC
  • §H.2.2 – Request Guard Time
  • §H.2.3 – Handling of bit collision during ATQA
  • §H.2.4 – Handling of anti-collision loop §H.2.5 – Handling of RATS and ATS
  • §H.2.6 – Handling of PPS response
  • §H.2.7 – Frame size selection mechanism
  • §H.2.8 – Handling of Start-up Frame Guard Time
  • §H.2.9 – Handling of the CID during activation by the PCD



Type B specific tests

  • §H.3.1 – I/O transmission timing
  • §H.3.2 – Frame size selection mechanism
  • §H.3.3 – Handling of the CID during activation by the PCD



Type A and Type B logical operations tests:

  • §H.4.1 – Handling of the polling loop
  • §H.4.2 – Reaction of the PCD to request for waiting time extension
  • §H.4.3 – Error detection and recovery
  • §H.4.4 – Handling of NAD during chaining



High bit rate selection tests

  • §I.2.1 – Procedure for Type A
  • §I.2.2 – Procedure for Type B
  • §I.2.3 – Procedure for bit rate selection using S(PARAMETERS) blocks



6. PCD INSPECTION SYSTEM – APPLICATION ICAO/EAC TEST SUITE

This PCD Application test suite is compatible with the following standard:

RF protocol and application test standard for eMRTD Part 4, Conformity test for inspection systems v1.01



Our coverage of this test specification includes the following test cases:

Layer 6 – Application Protocol tests:

  • Test of Application Selection
  • Test of Basic Access Control
  • Test of PACE protocol
  • Test of Secure Messaging
  • Test of Active Authentication
  • Test of Reading Binary Files



Layer 7 – Logical Data Structure tests:

  • Test with EF.COM
  • Test with.EF.DG1
  • Test with.EF.DG2
  • Test with.EF.SOD
  • Test with.EF.DG15
  • Test with.EF.DG14

eIDENTITY CARD & eDRIVING LICENSE

6. PICC ANALOG ISO 10373-6 TEST SUITE

This PICC Analog test suite is compatible with the following standard:

ISO/IEC 10373-6:2020 standard for Type A and Type B



Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 10373-6:2020):

ISO/IEC 14443-1 parameters tests

  • §6.2.1 – Alternating magnetic field

ISO/IEC 14443-2 parameters tests

  • §7.2.1 – PICC transmission
  • §7.2.2 – PICC EMD level and low EMD time test (VHBR not supported)
  • §7.2.3 – PICC reception
  • §7.2.4 – PICC resonance frequency
  • §7.2.5 – PICC maximum loading effect
  • §7.2.6 – PICC operating field strength



7. PICC DIGITAL ISO 10373-6 TEST SUITE

This PICC Digital test suite is compatible with the following standard:

ISO/IEC 10373-6:2020 standard for Type A and Type B.



Our coverage of this test specification includes the following test cases (numbering according to the ISO/IEC 10373-6:2016):

Type A initialization tests:

  • §G.3.2 – Scenario G.1 Polling Type A
  • §G.3.3 – Testing of the PICC Type A state transitions
  • §G.3.4 – Handling of Type A anti-collision
  • §G.3.5 – Handling of RATS
  • §G.3.6 – Handling of PPS request
  • §G.3.7 – Handling of FSD
  • §G.3.8 – Handling of FDT PICC to PCD and SFGT
  • §G.3.9 – PICC Bir Rates Capability



Type B initialization tests:

  • §G.4.2 – Scenario G.1 Polling Type B
  • §G.4.3 – Scenario G.22: PICC Reception
  • §G.4.4 – Testing of the PICC Type B state transitions
  • §G.4.5 – Scenario G.28: Handling of Type B anticollision
  • §G.4.6 – Handling of ATTRIB
  • §G.4.7 – Scenario G.31: Handling of Maximum Frame Size
  • §G.4.8 – Handling of TR2 and SFGT



Type A or type B logical operation tests:

  • §G.5.2 – PICC reaction to ISO/IEC 14443-4 Scenarios
  • §G.5.3 – Handling of PICC error detection
  • §G.5.4 – PICC reaction on CID
  • §G.5.5 – PICC reaction on NAD
  • §G.5.6 – PICC reaction on S(PARAMETERS) blocks
  • §G.5.7 – PICC supporting Type A and Type B



8. eID – APPLICATION IAS ECC TEST SUITE

This application test suite is compatible with the following standard: Identification Authentification Signature – European Citizen Card (IAS-ECC) application providing eServices within the ECC infrastructure. Presented by GIXEL group, the technical specification IAS ECC, formerly called IAS v2, is based on International and European following standards: CEN TS 15480 mandatory features for application: prEN 14890-1:2006 and prEN 14890-2:2006, ISO 7816 series, EAC V1.11.



9. eID – APPLICATION EAC V2 TEST SUITE

This application test suite is compatible with the following standard: BSI TR-03105 PART 3.3 Test plan for eID-Cards with Advanced Security Mechanisms



10. eDL – APPLICATION ISO 18013-4 TEST SUITE

This application test suite is compatible with the following standard:

ISO/IEC 18013-4:2019 – Personal Identification — ISO Compliant Driving License — Part 4: Test Methods

ISO/IEC DTR 19446 -ISO-Compliant Driving Licence – European driving license – Application profile
